Natural Ventilation System: Passive Design for Greenhouses
How a greenhouse natural ventilation system works without power: buoyancy and wind pressure, vent forms and opening angle, insect screen losses.
.
TEL：+86 191 5068 3942
- Features
A closed greenhouse heats up fast, and the most economical way to remove that heat, humidity and stale air is to let the weather do the work. This page covers the passive side: the two driving forces, the window forms that turn them into airflow, and when passive ventilation stops being enough. The layout of roof vents, louvres and fans is covered in our page on greenhouse ventilation layout.
1. The two driving forces: buoyancy and wind pressure
Buoyancy, or the stack effect. Warm air is lighter than cool air, so it rises and leaves through the highest opening, usually a roof or ridge vent, while cooler air is drawn in low near gutter level. The flow grows with the inside-outside temperature difference and the height gap between inlet and outlet, so a tall multi-span house behaves like a chimney while a low arch house has a weak buoyancy force.
Wind pressure. Wind hitting the windward wall pushes air in while the leeward side sits under suction and pulls it out. No temperature difference is needed, so this force dominates on a breezy day and in low, wide greenhouses — but it needs openings on two different faces. A single opening is not a ventilation system: air also needs a destination, higher and on the opposite side of the house.
The same physics applies to our greenhouse accessories.
Wind pressure. Wind hitting the windward wall pushes air in while the leeward side sits under suction and pulls it out. No temperature difference is needed, so this force dominates on a breezy day and in low, wide greenhouses — but it needs openings on two different faces. A single opening is not a ventilation system: air also needs a destination, higher and on the opposite side of the house.
The same physics applies to our greenhouse accessories.
2. Opening forms and what they really deliver
Ridge and roof vents sit highest and are the natural exhaust for the buoyancy flow. Pairs opening on opposite sides of the ridge beat a single flap, because one flap mainly serves one wind direction.
Side and louvre windows at gutter height are the low inlet that feeds the stack and, on the windward side, catch wind pressure directly. In a louvre the blades and frame take part of the opening: what counts is the free area between the blades, not the outer frame size.

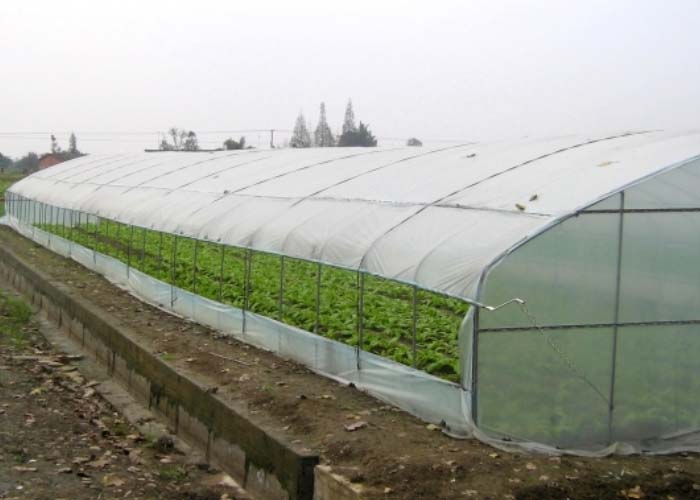

Roll-up side curtains give the largest continuous inlet per metre of wall — the image above shows film rolled at the side wall with a framed window in the end wall — and they open progressively, so they can be matched to the day.
The number that matters is the effective opening area: the geometric opening reduced by frame and blade obstruction, by insect netting and by a partial opening angle. Our greenhouse programs cover several ventilation modes — among them natural ventilation, membrane ventilation and rack-and-pinion sliding sash windows — and each has its own advantages, so the choice suits the needs of the project.
Side and louvre windows at gutter height are the low inlet that feeds the stack and, on the windward side, catch wind pressure directly. In a louvre the blades and frame take part of the opening: what counts is the free area between the blades, not the outer frame size.
Roll-up side curtains give the largest continuous inlet per metre of wall — the image above shows film rolled at the side wall with a framed window in the end wall — and they open progressively, so they can be matched to the day.
The number that matters is the effective opening area: the geometric opening reduced by frame and blade obstruction, by insect netting and by a partial opening angle. Our greenhouse programs cover several ventilation modes — among them natural ventilation, membrane ventilation and rack-and-pinion sliding sash windows — and each has its own advantages, so the choice suits the needs of the project.
3. Opening angle, wind direction and short-circuiting
Opening a vent wider increases the flow, but not in proportion: past a moderate angle part of the extra area faces the leeward side and adds little, because flow is then limited by the free path rather than by panel area.
Wind direction decides which opening works. With wind across the house, low windward openings feed it and high leeward openings exhaust it; with wind along the ridge, roof vents lose suction and buoyancy matters more. In the calm, hot hours of midsummer the height gap between inlet and outlet carries the load alone, so keep inlet and outlet apart in height and side to avoid short-circuiting.
Wind direction decides which opening works. With wind across the house, low windward openings feed it and high leeward openings exhaust it; with wind along the ridge, roof vents lose suction and buoyancy matters more. In the calm, hot hours of midsummer the height gap between inlet and outlet carries the load alone, so keep inlet and outlet apart in height and side to avoid short-circuiting.
4. What insect screens and other obstructions cost
Insect netting is the most common reason a natural ventilation system under-performs. The finer the mesh, the smaller the share of the opening that still passes air, so a screen rated for the smallest insects costs noticeably more airflow than a coarse one. Oversize the opening when screens are mandatory: extra square metres of vent are less costly than extra horsepower.
Check the other losses too: a covered vent, a canopy against the side wall, internal screens blocking the path, gaps that bypass the openings. Where mechanical help is still needed, compare the passive options on our exhaust fan airflow and air circulation fan pages with the wider discussion of climate control, such as the protected cultivation material published by the USDA and the greenhouse practice reported by Hortidaily.
Check the other losses too: a covered vent, a canopy against the side wall, internal screens blocking the path, gaps that bypass the openings. Where mechanical help is still needed, compare the passive options on our exhaust fan airflow and air circulation fan pages with the wider discussion of climate control, such as the protected cultivation material published by the USDA and the greenhouse practice reported by Hortidaily.
5. Passive design rules that decide whether it works
1. Height difference between low inlet and high outlet is the engine of the stack effect; where an arch house offers only a small gap, the design must lean on wind-driven flow and larger openings.
2. Opening ratio: plan the total passive opening as a share of the floor area, with roof and side openings both represented; the right share depends on climate, crop and accepted temperature rise.
3. A clear internal path: inlet and outlet on opposite sides at different heights, with nothing solid between them at canopy level.
4. Orientation and summer wind: aligning the ridge with the prevailing summer wind helps, but opening placement matters more.
5. Staged operation and upkeep: step the openings up through the morning and down in the evening, and keep operators, hinges, tracks and rollers free — a vent that has seized is permanently shut.
These components come from our greenhouse equipment range.
2. Opening ratio: plan the total passive opening as a share of the floor area, with roof and side openings both represented; the right share depends on climate, crop and accepted temperature rise.
3. A clear internal path: inlet and outlet on opposite sides at different heights, with nothing solid between them at canopy level.
4. Orientation and summer wind: aligning the ridge with the prevailing summer wind helps, but opening placement matters more.
5. Staged operation and upkeep: step the openings up through the morning and down in the evening, and keep operators, hinges, tracks and rollers free — a vent that has seized is permanently shut.
These components come from our greenhouse equipment range.
6. Passive or mechanical ventilation — how to choose
Passive ventilation should be the first line of defence: it costs nothing to run and carries much of the cooling load whenever outside air is cooler than the target temperature. Its limitation is that the exchange rate follows the weather — strong on a breezy day, weak in the calm, hot afternoon when the crop needs it most.
Mechanical ventilation becomes the right answer when outside air is already too warm to help, when the crop needs a defined air speed across the canopy, or when the site is sheltered and the stack height is too small. It gives a measurable exchange rate that can be designed to, at the cost of energy and maintenance; most greenhouses run the two together.
Compare over the season rather than at one design hour: check floor area against effective opening area, the height gap between inlet and outlet, prevailing summer wind and its calm hours, whether screens are required, and the inside temperature rise the crop can accept.
If you need to ask a question and get some help to find the best greenhouse for you, then just call us on +86 191 5068 3942 or send E-mail to sales@cngreenhouses.com.
Mechanical ventilation becomes the right answer when outside air is already too warm to help, when the crop needs a defined air speed across the canopy, or when the site is sheltered and the stack height is too small. It gives a measurable exchange rate that can be designed to, at the cost of energy and maintenance; most greenhouses run the two together.
Compare over the season rather than at one design hour: check floor area against effective opening area, the height gap between inlet and outlet, prevailing summer wind and its calm hours, whether screens are required, and the inside temperature rise the crop can accept.
If you need to ask a question and get some help to find the best greenhouse for you, then just call us on +86 191 5068 3942 or send E-mail to sales@cngreenhouses.com.
Frequently Asked Questions: natural ventilation
Q1: How does a greenhouse ventilate itself without any power?
Warm air inside is lighter than the cooler air outside, so it rises and escapes through the highest opening while cooler air is drawn in low: the buoyancy or stack effect. Separately, wind creates pressure on the windward face and suction on the leeward face, pushing air through any pair of openings on opposite sides.
Q2: Do roof vents or side vents give more airflow?
They do different jobs. Roof and ridge vents sit highest and exhaust warm air, driving the stack effect; side windows, louvre windows and roll-up curtains sit low, act as the inlet and catch wind pressure on the windward side.
Q3: Does the opening angle change how much a vent ventilates?
Yes, with diminishing returns. Flow rises with the opening angle at first, then flattens as part of the extra area faces the leeward side. The free path, not the panel area, becomes the limiting factor.
Q4: Does insect netting reduce the ventilation rate?
It does: a screen obstructs part of the opening, and a finer mesh passes less air than a coarse one, with dust making it worse. The usual answer is to enlarge the opening when screens are required.
Q5: Which ventilation modes can be supplied with the greenhouse?
Our greenhouse programs cover several ventilation modes, among them natural ventilation, membrane ventilation and rack-and-pinion sliding sash windows. Each has its own advantages, and the choice is made according to the actual needs of the project.
Q6: When does a greenhouse need mechanical ventilation as well?
When outside air is too warm to cool the house, when the crop needs a defined air speed across the canopy, or when the site is sheltered and the stack height is too small for buoyancy. It gives a controlled exchange rate independent of the weather.
Q1: How does a greenhouse ventilate itself without any power?
Warm air inside is lighter than the cooler air outside, so it rises and escapes through the highest opening while cooler air is drawn in low: the buoyancy or stack effect. Separately, wind creates pressure on the windward face and suction on the leeward face, pushing air through any pair of openings on opposite sides.
Q2: Do roof vents or side vents give more airflow?
They do different jobs. Roof and ridge vents sit highest and exhaust warm air, driving the stack effect; side windows, louvre windows and roll-up curtains sit low, act as the inlet and catch wind pressure on the windward side.
Q3: Does the opening angle change how much a vent ventilates?
Yes, with diminishing returns. Flow rises with the opening angle at first, then flattens as part of the extra area faces the leeward side. The free path, not the panel area, becomes the limiting factor.
Q4: Does insect netting reduce the ventilation rate?
It does: a screen obstructs part of the opening, and a finer mesh passes less air than a coarse one, with dust making it worse. The usual answer is to enlarge the opening when screens are required.
Q5: Which ventilation modes can be supplied with the greenhouse?
Our greenhouse programs cover several ventilation modes, among them natural ventilation, membrane ventilation and rack-and-pinion sliding sash windows. Each has its own advantages, and the choice is made according to the actual needs of the project.
Q6: When does a greenhouse need mechanical ventilation as well?
When outside air is too warm to cool the house, when the crop needs a defined air speed across the canopy, or when the site is sheltered and the stack height is too small for buoyancy. It gives a controlled exchange rate independent of the weather.
